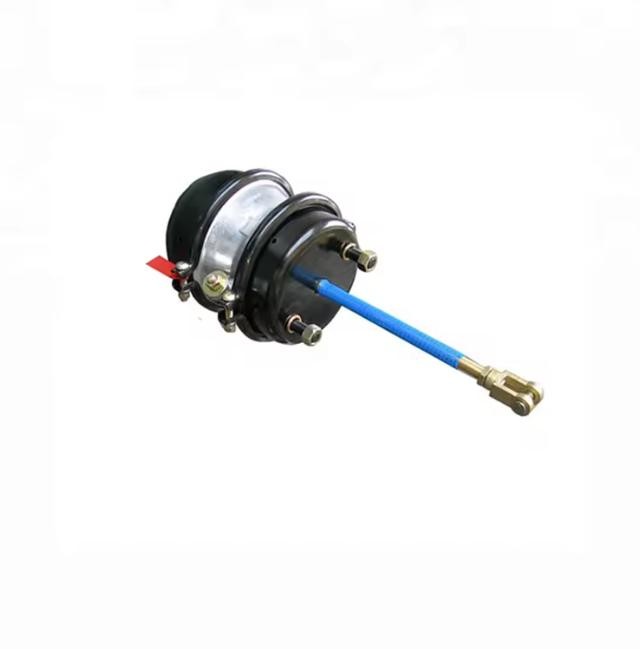

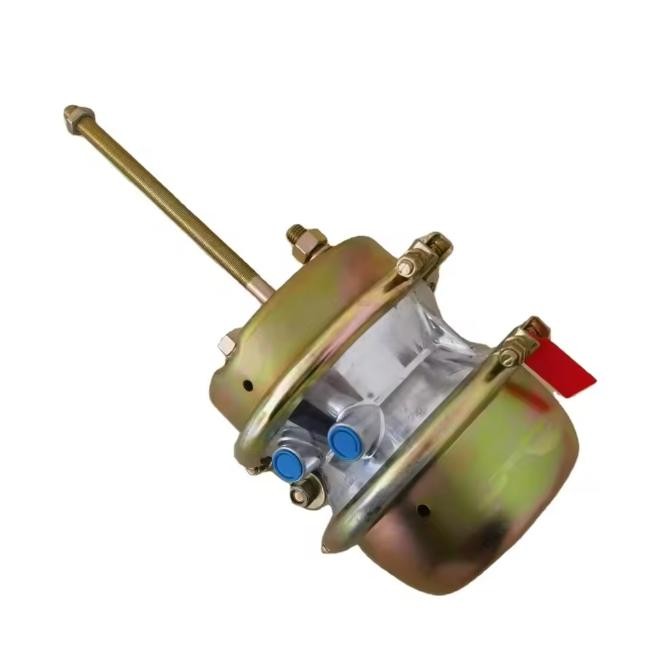

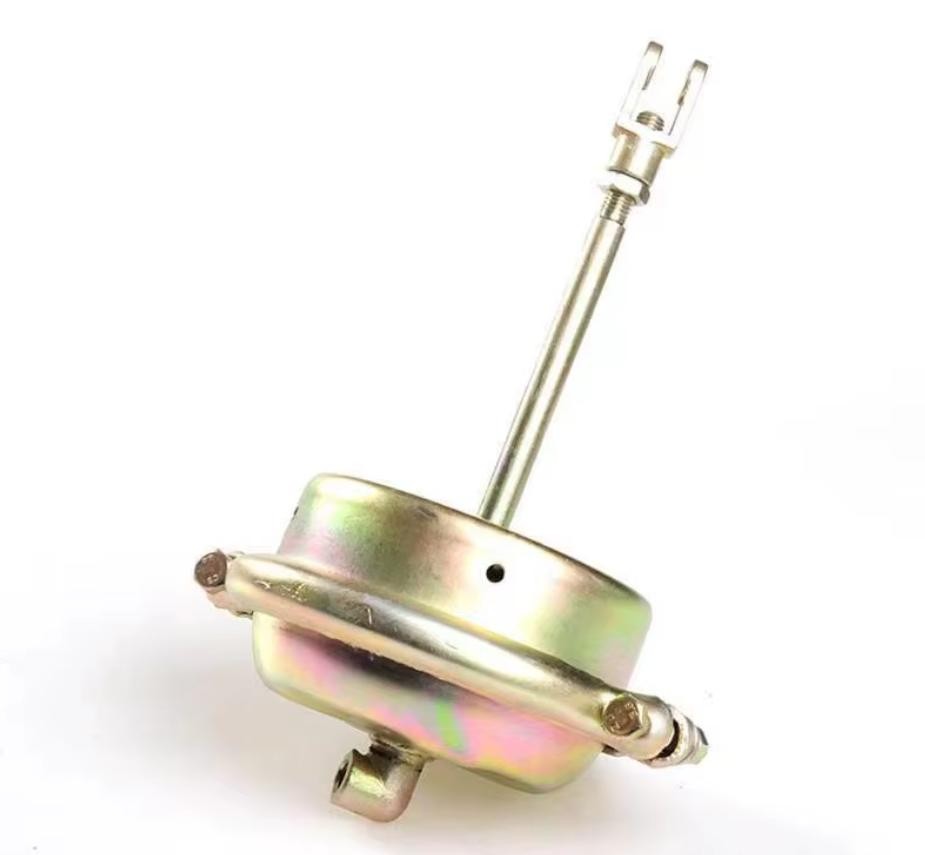

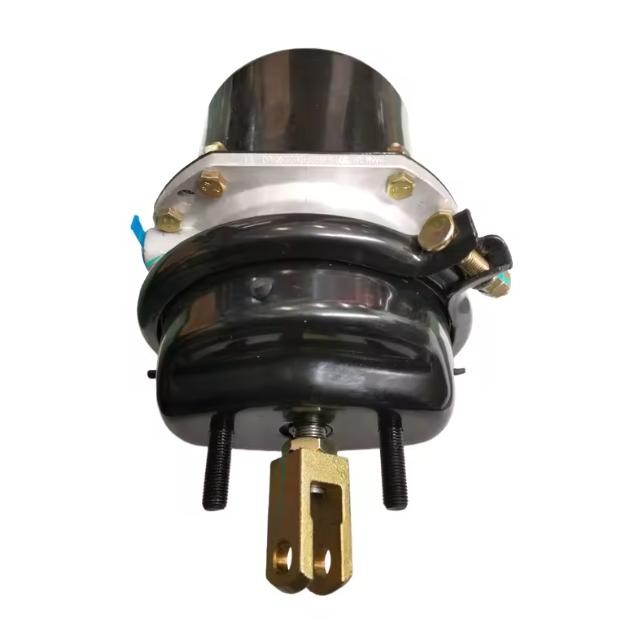

3030 Brake Chamber Highway Heavy Duty Trailer Truck Parts American Type Brake Chamber

3030 Brake Chamber Highway Heavy Duty Trailer Truck Parts American Type Brake Chamber

Category： BRAKE CHAMBER
INQUIRY EMAIL

Product Description:

Type	Stroke	R1	R2	L1	L2	Pushrod Thread Length L4	Pushrod Thread	Air Inlet Thread	Mounting Bolt Thread	Mounting Inluded Angle	Weight

T-24/24	64	116	93	224	270	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45	8kgs
T-30/30	64	130	106	238	255	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45	9kgs
T-24/30	64	116	93	230	212	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	90	8kgs
Chamber Volume(Litre) (Measure Pressure:700kpa)
Type	Service Chamber				Paking Chamber	Service Chamber	Paking Chamber		Parking Chamber Hold-off Pressure	(kn)
										Parking Chmber Force Output

										(Stroke:38mm)
T-24/24	1.04					1.16			537	4.98
T-30/30	1.32					1.78			500	6.11

Team

We have a professional &efficient technology team to ensure the high quality products.And we will provide the professional solution and help you to solve the problems at first time.

Quality Control

Confirm each detail before production.
The materials will be fully inspected before the production.
The strict management system control each production processing during production.
The completed products will be inspected again before delivery.
We provide the photos and videos to clients who can learn the updated order progress at any time.

Shipment

We choose the economy and fast shipping solutions for clients.And deliver the related commercial documents to clients ASAP in order for clients to clear the goods in time.
